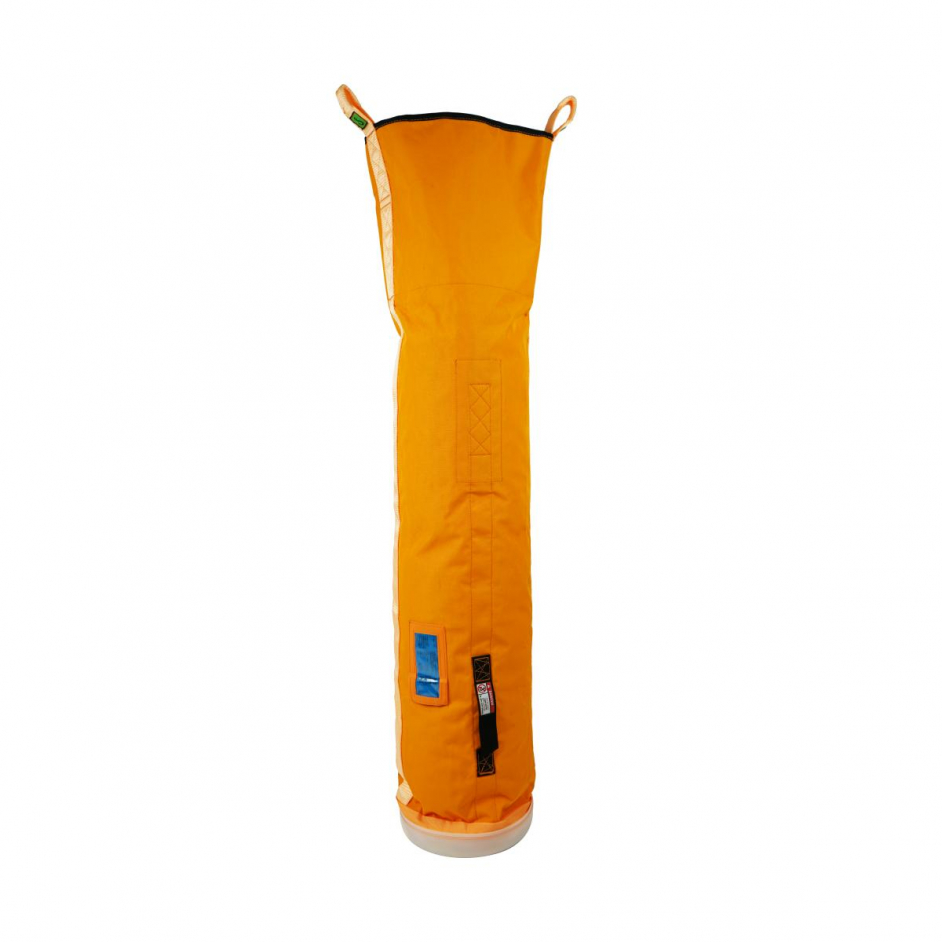

The EMG 3209 Tall Bottle Bag with dual lifting option is a cylindrical lifting bag developed for safely handling and hoisting gas bottles and other elongated objects up to 150 kg. Its smart design allows use at full or half height, making it suitable in areas with restricted headroom or shorter loads. The reinforced bottom and high-grade materials provide optimal durability and safety for demanding industrial applications. The product complies with ISO 21898 and EN 1492-1.
Foldable design for dual lifting modes
By folding down the top section, the bag converts to a shorter version with additional lifting loops, ideal for use with smaller loads or areas with limited lifting height.
Replaceable, reinforced base protection
The heavy-duty rubber bottom cover can be removed and replaced via velcro; a foam PVC plate in the base offers added protection and weight distribution.
Technical specifications
- Working load limit: 150 kg (WLL)
- Capacity: 80 litres
- Weight: 3.5 kg
- Dimensions open: 28 x 148 cm (Ø x H)
- Dimensions closed: 28 x 130 cm (Ø x H)
- Lifting height: 140 cm
- Bag material: D1800*900 PVC, flat-coated
- Lifting straps: 50 mm polyamide
- Base: DOT PVC, replaceable
- Handles: polyester (side)
- Standards: ISO 21898, EN 1492-1
| Capacity | 80 litres |
| Working Load Limit | 150 kilogram |
| Reference numbers | 3209 |
