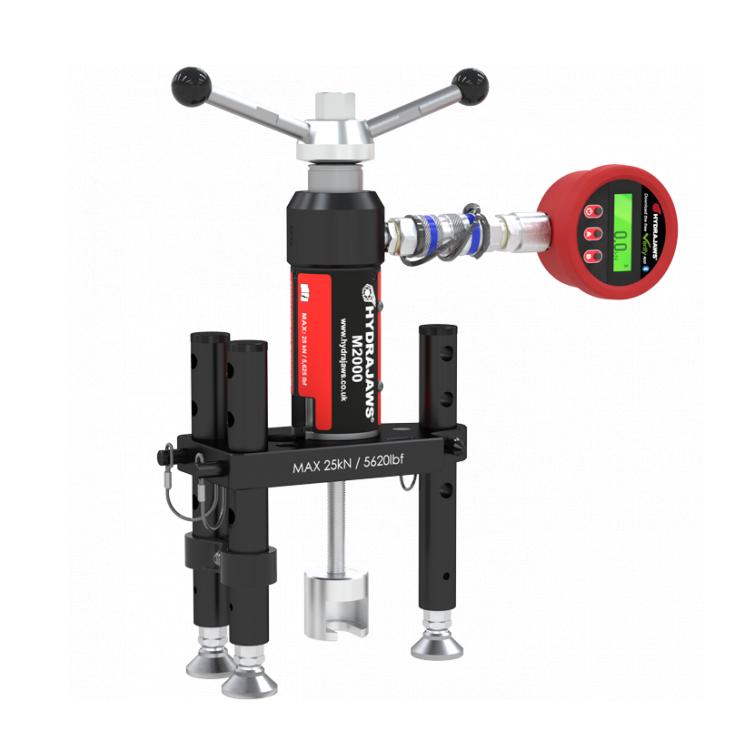

The Hydrajaws Model 2000 Pro tester kit is engineered for pull testing anchors, fixings and fall protection points in diverse safety-critical applications. With a maximum tensile load of 25kN, it complies with BS 8539, BS 7883, BS EN 795 and AEFAC-TN05 and is suitable for construction, industrial environments and rope access operations. The universal adaptor set allows for a broad range of fixings to be tested. The three-legged load spreading bridge ensures reaction loads are redirected for reliable measurements. Easy to operate and portable, the system comes with a certified calibration certificate.
Reliable and safe pull-out testing
The precise hydraulic measurement system and high-quality accessories allow anchor and fixing testing to meet strict international standards.
Extensive accessory kit
Supplied with a selection of adaptors for multiple fixings and a sturdy carry case for wide test coverage.
- Maximum tensile load: 0–25kN (5620 lbf)
- Rechargeable, detachable digital gauge, accuracy: ±1.5% fsd
- Stroke: 0–50 mm effective
- Weight (tester): 2.2 kg | Total in case: 10 kg
- Accessories: M12 Ringbolt Adaptor Clevis, Bolt tester adaptor with M12 locking, M16 & M20 Threaded stud adaptors, 6 slotted button adaptors (4.5–12.5 mm), 6 threaded button adaptors (M4–M12)
- Oil: ISO VG 32 mineral oil
- IP54 protection (digital version)
- Working temperature: -10°C to +50°C
- 12-month calibration certificate
- Carry case, user manual, service & recalibration
| Standardization | EN 795 |
| Execution | Single |
| Type of attachment | Removable |
| Reference numbers | 77/020/A, 77/020/D |
